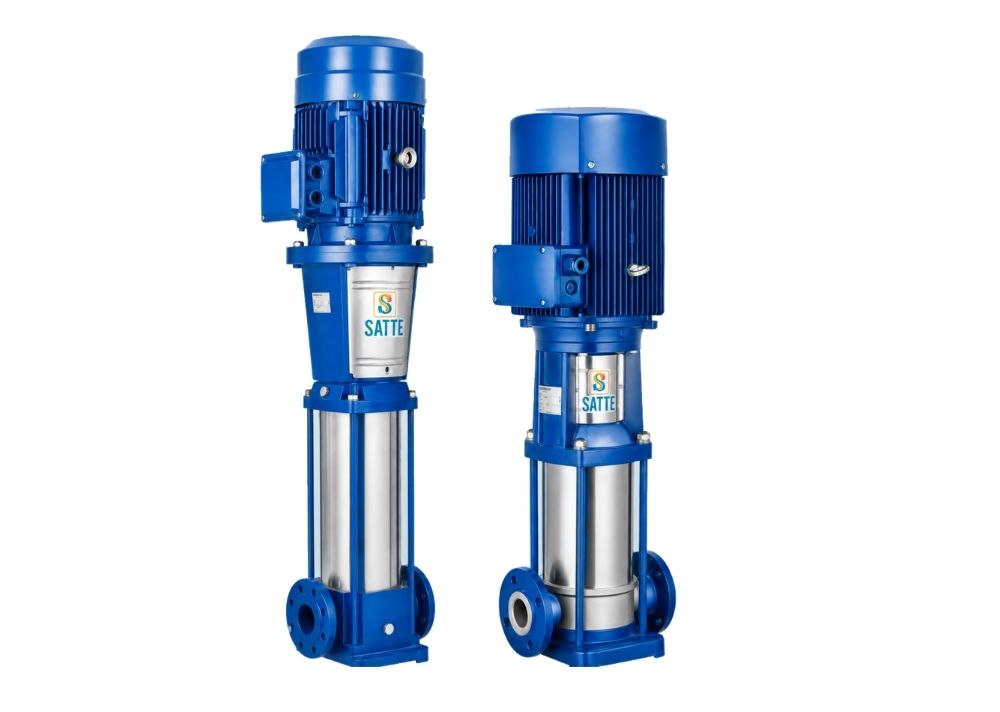

SAR 16

SAR 16

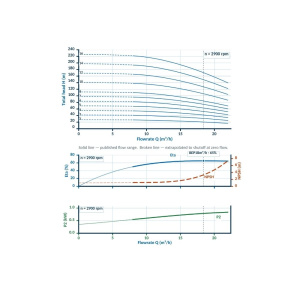

SAR 16sar_16


The add to cart button will appear once you select the values above

Typical Applications

  • Water supply: raw-water transfer, filtration and boosting duties in waterworks, district distribution, high-rise pressure boosting and packaged booster sets.
  • Industrial pressure boosting: process water systems, washing and cleaning plant and high-pressure flushing systems.
  • Industrial liquid transfer: cooling and air-conditioning circuits, boiler feed and condensate systems, machine-tool coolant supply, and mild acids and alkalis.
  • Water treatment: ultra-filtration, reverse osmosis, distillation, separators and swimming-pool circulation.
  • Irrigation: field and farm irrigation, sprinkler systems and drip irrigation.

Operating Conditions

  • Thin, clean, non-flammable and non-explosive liquids, free of solid particles or fibres.
  • Liquid temperature: standard version −15 °C to +70 °C; hot-water version +70 °C to +120 °C.
  • Maximum ambient temperature +40 °C; maximum installation altitude 1000 m.
  • Maximum pressure generated ranges from 2.6 bar on SAR 16-2 to 21.8 bar on SAR 16-16, model by model — see Technical Data. Suction and discharge flanges to PN25 / DN50.
  • Suction and discharge ports are in line and of equal bore, allowing the pump to be installed directly in a straight pipe run.
  • Pump head and motor are coupled by a rigid spacer coupling, so the mechanical seal can be changed without disturbing the pipework.
  • Non-self-priming: the pump must be fully primed and the required NPSH maintained at the inlet to avoid cavitation.
  • Above +40 °C ambient or above 1000 m altitude the motor output is derated and a larger motor frame must be selected. Motor totally enclosed, fan-cooled, protection IP55, insulation class F.
  • Optional intelligent controller protects against dry running, phase failure and overload.

Technical Data

Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)
Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 16-2 2.2 3 1~ 220-240 V 14 61 41 74 16 22 27 22 2900 2.6 DN50 397 290 687 190 155 42
SAR 16-3 3 4 3~ 380-415 V 5.9 38 18 85.8 16 34 41 22 2900 4 DN50 452 345 797 197 165 50
SAR 16-4 4 5.5 3~ 380-415 V 7.7 50 23 86.8 16 46 54 22 2900 5.3 DN50 497 355 852 230 188 59
SAR 16-5 5.5 7.5 3~ 380-415 V 11 68 32 87.8 16 58 68 22 2900 6.7 DN50 562 390 952 260 208 76
SAR 16-6 5.5 7.5 3~ 380-415 V 11 68 32 87.8 16 70 82 22 2900 8 DN50 607 390 997 260 208 77
SAR 16-7 7.5 10 3~ 380-415 V 14 91 42 88.5 16 82 96 22 2900 9.4 DN50 652 390 1042 260 208 84
SAR 16-8 7.5 10 3~ 380-415 V 14 91 42 88.5 16 94 110 22 2900 10.8 DN50 697 390 1087 260 208 86
SAR 16-10 11 15 3~ 380-415 V 20 142 61 89.7 16 118 138 22 2900 13.5 DN50 875 500 1375 330 255 158
SAR 16-12 11 15 3~ 380-415 V 20 142 61 89.7 16 141 166 22 2900 16.3 DN50 965 500 1465 330 255 161
SAR 16-14 15 20 3~ 380-415 V 27 190 82 90.5 16 166 194 22 2900 19 DN50 1055 500 1555 330 255 174
SAR 16-16 15 20 3~ 380-415 V 27 190 82 90.5 16 189 222 22 2900 21.8 DN50 1145 500 1645 330 255 178
