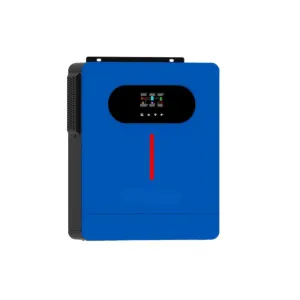

SINV

The add to cart button will appear once you select the values above

Typical Applications

Residential Power Backup: Provides reliable power for homes during outages, ensuring uninterrupted electricity for essential appliances and lighting.
Remote Areas: Ideal for off-grid locations without access to the main power grid, such as rural or mountainous regions.
Solar Power Systems: Perfect for solar energy setups, converting solar power into usable AC electricity for homes or businesses.
Agricultural Use: Powers irrigation systems, water pumps, and other farming equipment in remote agricultural fields.
Telecommunication Towers: Ensures continuous power supply for telecom infrastructure in areas with unreliable grid connections.
Emergency Power: Used in disaster-prone areas to provide emergency power for hospitals, shelters, and relief operations.
Small Businesses: Supports small-scale businesses like shops, workshops, and offices in areas with frequent power cuts.
Recreational Vehicles (RVs): Provides power for RVs and caravans, enabling off-grid travel and camping.
Construction Sites: Powers tools and equipment at remote construction sites where grid power is unavailable.
Educational Institutions: Ensures uninterrupted power for schools and colleges in rural or off-grid locations.

Key Features

Ensures clean and stable power for sensitive electronics like laptops, medical devices, and home appliances.
High PV Input Voltage Range (60~500VDC): Suitable for large solar arrays, maximizing energy harvest in sunny regions.
Built-in 120A MPPT Solar Charge: Optimizes solar energy conversion, ideal for areas with high solar irradiation.
Anti-Dust Kit: Designed for harsh environments like deserts or industrial areas where dust and debris are common.
Smart Battery Charge Design: Extends battery life, making it cost-effective for long-term off-grid applications.
Inverter Can Run Without Battery: Useful in hybrid systems where grid or solar power is available intermittently.

Technical Data

PARAMETER	SINV-3.6KW	SINV-4.2KW	SINV-6.2KW
GENERAL
Rated Output Power	3600 W	4200 W	6200 W
Battery System Voltage	48 VDC	48 VDC	48 VDC
AC OUTPUT
Nominal Output Voltage	220 VAC ± 5 %	220 VAC ± 5 %	220 VAC ± 5 %
Output Frequency	50 Hz / 60 Hz (auto sensing)	50 Hz / 60 Hz (auto sensing)	50 Hz / 60 Hz (auto sensing)
Output Waveform	Pure sine wave	Pure sine wave	Pure sine wave
Peak Efficiency — PV to Inverter	≥ 98 %	≥ 98 %	≥ 98 %
SOLAR CHARGER (MPPT)
Solar Charger Type	MPPT, single tracker	MPPT, single tracker	MPPT, single tracker
Maximum PV Array Power	3600 W	4200 W	6200 W
MPPT Operating Voltage Range	120 – 450 VDC	120 – 450 VDC	120 – 450 VDC
Maximum Solar Charging Current	60 A	80 A	100 A
Maximum Solar Charging Power (48 V)¹	≈ 2.9 kW	≈ 3.9 kW	≈ 4.9 kW
MECHANICAL
Dimensions (H × W × D)	450 × 350 × 200 mm	500 × 400 × 220 mm	550 × 450 × 250 mm
Net Weight	10 kg	12 kg	15 kg
Mounting	Wall-mounted	Wall-mounted	Wall-mounted
Cooling	Forced air, anti-dust filtered	Forced air, anti-dust filtered	Forced air, anti-dust filtered
ENVIRONMENT
Operating Temperature	−10 °C to +50 °C	−10 °C to +50 °C	−10 °C to +50 °C
Relative Humidity	5 % to 95 %, non-condensing	5 % to 95 %, non-condensing	5 % to 95 %, non-condensing
Maximum Operating Altitude²	2000 m without derating	2000 m without derating	2000 m without derating
AC INPUT & CHARGER
Nominal AC Input Voltage	230 VAC	230 VAC	230 VAC
Acceptable AC Input Range	90 – 280 VAC / 170 – 280 VAC (selectable)	90 – 280 VAC / 170 – 280 VAC (selectable)	90 – 280 VAC / 170 – 280 VAC (selectable)
BATTERY BANK CONFIGURATION — BATTERIES ONLY, NOT SOLAR PANELS²
Battery Modules in Series	Not permitted — parallel connection only	Not permitted — parallel connection only	Not permitted — parallel connection only
Min. Battery Modules — S100Ah, 48 V 100 Ah (4.8 kWh)	2	2	3
Min. Battery Modules — S280Ah, 48 V 280 Ah (14.3 kWh)	1	1	1
Max. Battery Modules in Parallel	2	3	4
Recommended Battery Bank Capacity	10 – 14 kWh	10 – 15 kWh	15 – 21 kWh
DISPLAY & MONITORING
Display	LCD with status and fault indication	LCD with status and fault indication	LCD with status and fault indication
Remote Monitoring (Wi-Fi / app)	Not available on this model. Specify SATTE SNM-ECO, MAX or TURBO where app monitoring is required.	Not available on this model. Specify SATTE SNM-ECO, MAX or TURBO where app monitoring is required.	Not available on this model. Specify SATTE SNM-ECO, MAX or TURBO where app monitoring is required.
