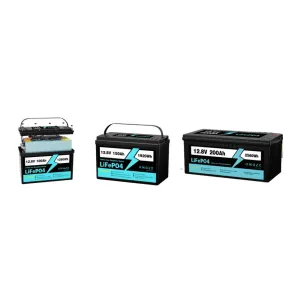

SH-UIB

The add to cart button will appear once you select the values above

Typical Applications

Renewable energy storage systems: Efficiently store solar and wind energy for consistent power supply in off-grid setups.
Electric vehicles and marine applications: Power electric cars, boats, or yachts with lightweight and durable batteries.
Telecommunication base stations: Provide reliable backup energy to maintain uninterrupted communication during power outages.
Emergency power supply systems: Deliver dependable energy during critical situations in hospitals, homes, or businesses.

Features

Safe lithium iron phosphate (LiFePO4) cells Durable protective structure
Supports up to 98% DOD Fast charging and discharging capability
Expandable with up to 16 parallel connections
Smart BMS for optimized performance Real-time monitoring via mobile apps and PC access
Easy and flexible installation options Designed for convenient wall-mounted setup
Up to 10 years lifespan

Technical Data

200 Ah
Nominal Energy	1.28 kWh	1.92 kWh	2.56 kWh
Usable AC Energy through Inverter¹	1.18 kWh	1.77 kWh	2.36 kWh
Operating Voltage Range	10.0 – 14.6 V	10.0 – 14.6 V	10.0 – 14.6 V
Cell Type	LFP — lithium iron phosphate	LFP — lithium iron phosphate	LFP — lithium iron phosphate
Battery Configuration	1P 4S — four cells in series	1P 4S — four cells in series	1P 4S — four cells in series
Depth of Discharge	98 %	98 %	98 %
CHARGE
Charging Method	CC / CV — constant current, constant voltage	CC / CV — constant current, constant voltage	CC / CV — constant current, constant voltage
Charging Rate	0.5 C	0.5 C	0.5 C
Nominal Charging Current	50 A	75 A	100 A
Maximum Charging Current	50 A	75 A	100 A
Charging Cut-Off Voltage²	14.6 V	14.6 V	14.6 V
Charge Temperature Range	0 °C to +45 °C	0 °C to +45 °C	0 °C to +45 °C
DISCHARGE
Discharge Mode	CC / CV / CP	CC / CV / CP	CC / CV / CP
Discharge Rate	1 C	1 C	1 C
Nominal Discharging Current	≤ 100 A	≤ 150 A	≤ 200 A
Maximum Discharge Current	100 A	150 A	200 A
Continuous Discharge Power	1.28 kW	1.92 kW	2.56 kW
Discharge Cut-Off Voltage²	10.0 V	10.0 V	10.0 V
Discharge Temperature Range	−20 °C to +50 °C	−20 °C to +50 °C	−20 °C to +50 °C
INVERTER CHARGE SETTINGS³
Battery Type Setting on Inverter	Lithium, or User-Defined where no lithium profile exists	Lithium, or User-Defined where no lithium profile exists	Lithium, or User-Defined where no lithium profile exists
Bulk / Absorption Voltage	14.4 V	14.4 V	14.4 V
Float Voltage	13.6 V	13.6 V	13.6 V
Over-Voltage Cut-Off	14.6 V	14.6 V	14.6 V
Low-Voltage Disconnect	11.2 V	11.2 V	11.2 V
Low-Voltage Reconnect	12.8 V	12.8 V	12.8 V
BANK CONFIGURATION — BATTERIES ONLY, NOT SOLAR PANELS
Battery Modules in Series	Not permitted — parallel connection only	Not permitted — parallel connection only	Not permitted — parallel connection only
Maximum Modules in Parallel (manufacturer limit)	16	16	16
Min. Modules — SATTE SMS-1000-12	1	1	1
Min. Modules — SATTE SML-2000-12	2	1	1
Recommended Max. Modules — SMS-1000-12⁴	1	1	1
Recommended Max. Modules — SML-2000-12⁴	4	3	2
MECHANICAL
Dimensions (L × W × H)	332 × 172 × 220 mm	332 × 172 × 220 mm	520 × 244 × 221 mm
Weight	13 kg	16 kg	21 kg
Cooling	Natural convection — no fan, silent, maintenance-free	Natural convection — no fan, silent, maintenance-free	Natural convection — no fan, silent, maintenance-free
Ingress Protection	IP65	IP65	IP65
INTERFACE, ENVIRONMENT & CERTIFICATION
Communication	RS485 / RS232 / CAN	RS485 / RS232 / CAN	RS485 / RS232 / CAN
Monitoring	Smart BMS with real-time monitoring by mobile app and PC	Smart BMS with real-time monitoring by mobile app and PC	Smart BMS with real-time monitoring by mobile app and PC
Relative Humidity	≤ 95 %	≤ 95 %	≤ 95 %
Maximum Operating Altitude	2000 m	2000 m	2000 m
Design Life	Up to 10 years	Up to 10 years	Up to 10 years
Transport Certification	UN38.3 / MSDS / DGM	UN38.3 / MSDS / DGM	UN38.3 / MSDS / DGM
