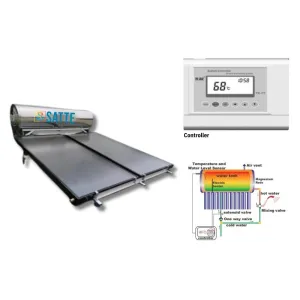

SCT Solar water heater

The add to cart button will appear once you select the values above

Typical Applications

Provides hot water for domestic use, such as bathing and washing.
Supplies hot water for hotels, lodges, and other commercial establishments.
Ideal for heating water in hospitals and healthcare facilities.
Used for hot water supply in industrial processes requiring heat.
Powers underfloor heating systems in residential and commercial buildings.
Suitable for heating swimming pool water efficiently using solar energy.
Reduces energy consumption in homes and businesses by utilizing renewable energy.
Used in large residential complexes to provide hot water to multiple units

Operating Conditions

Optional Intelligent controller
Accessories：Electrical heater, Safety valve, check valve, anode magnesium, copper connectors 8. Angle of bracket：27°
Working pressure: 6.0 bar
Hot water Output：45-90℃

Technical Data

Parameter	SCT 150	SCT 200	SCT 300
System storage capacity	150 L	200 L	300 L
Typical household	up to 5 people	up to 7 people	up to 10 people
Flat plate collectors	1 × FCP 2.0	1 × FCP 2.4	2 × FCP 2.0
Collector gross area	2.0 m²	2.4 m²	4.0 m²
Collector panel size L × W × H	2000 × 1060 × 80 mm	2000 × 1310 × 80 mm	2 × (2000 × 1060 × 80 mm)
Collector weight	32 kg	38 kg	64 kg
Collector fluid content	12 L	15 L	24 L
Indicative heat output — high season (6.0 kWh/m²/day)	11.0 kWh/day	14.3 kWh/day	22.3 kWh/day
Indicative heat output — low season (4.0 kWh/m²/day)	7.4 kWh/day	9.6 kWh/day	14.9 kWh/day
Hot water delivery temperature	45–90 °C (fit a thermostatic mixing valve — see Sheet 3)
Max. operating pressure	Direct tank 6 bar · Indirect tank 4 bar
Max. operating temperature	150 °C (collector stagnation)
Max. flow rate	2 m³/h
Connections	Inlet ½″ BSP · Outlet ½″ BSP
Frame angle	27° (bracket for flat or pitched roof)
Backup heater	1.5 kW or 2.0 kW, 230 V, with TK-7Y controller (optional)
Ambient / wind	−5 °C to +50 °C · frame rated 130 km/h when anchored per manual

Dimensions (mm) — see drawing
A — system width	1000	1400	2100
B — collector length	2000
C — overall length incl. frame	2600
D — tank length	1170	1480	2300
E — tank diameter	520
F — height at tank	620

Weights
Empty weight	65 kg	75 kg	105 kg
Operating weight (filled)	215 kg	275 kg	405 kg
