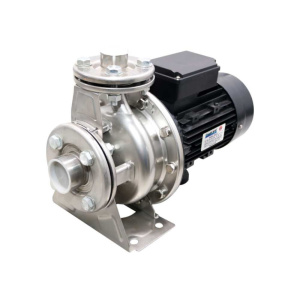

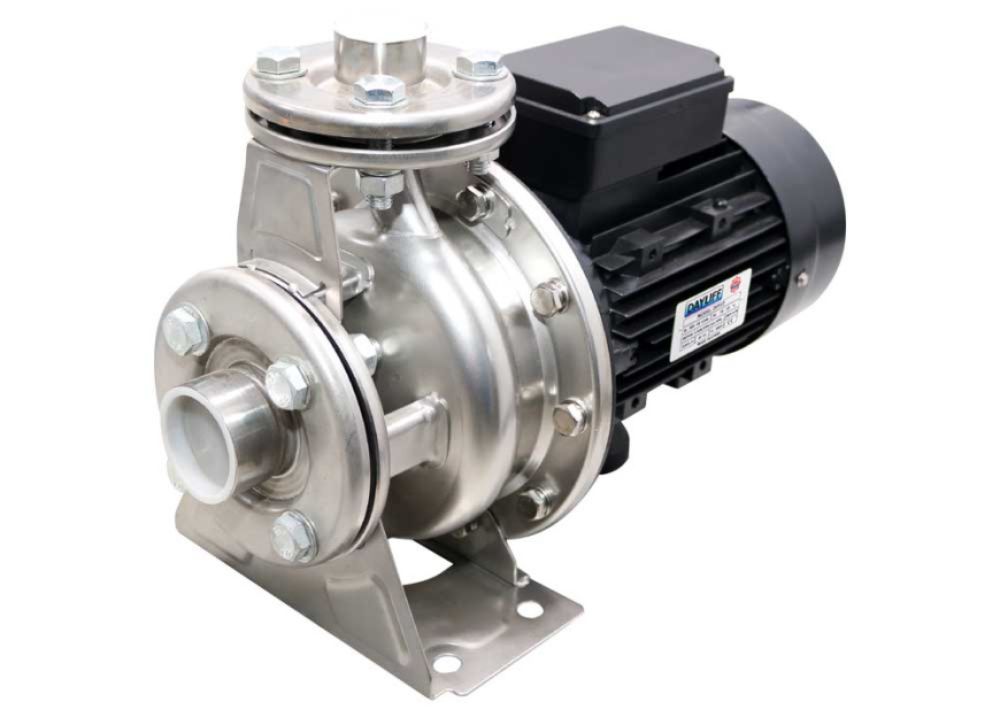

The Dayliff DFP sanitary pumps are designed specifically to meet the hygiene requirements of sterile operating processes, making them suitable for a range of applications in industries where cleanliness and product integrity are crucial. Dayliff DFP sanitary pumps can be used for:
1. Water Supply Systems: The DFP pumps can be employed in water supply systems that require sanitary conditions, such as in hospitals, laboratories, or pharmaceutical facilities. They ensure the safe and hygienic delivery of water for various purposes, including drinking water supply or process water.
2. Pressure Boiler Feeding: These pumps are suitable for applications in pressure boiler systems, commonly found in industrial processes or commercial buildings. They can efficiently supply water to boilers, ensuring optimal pressure and reliable steam generation.
3. Pure Water Treatment Systems: The DFP sanitary pumps can be utilized in pure water treatment systems, such as those used in the pharmaceutical, semiconductor, or food and beverage industries. They can handle the circulation and transfer of purified water, ensuring its quality and integrity throughout the treatment process.
4. Pharmaceutical Industry: These pumps are well-suited for applications in the pharmaceutical industry, where sterile conditions and precise control of fluid flow are essential. They can be used for various processes, including the transfer of liquid pharmaceutical products, ingredient mixing, or clean-in-place (CIP) systems.
5. Food and Refining Chemical Industries: The DFP pumps find application in the food and refining chemical industries, where hygienic processes are necessary. They can handle the transfer of liquid food products, beverages, or refined chemicals, ensuring product quality and preventing contamination.
The design features of the DFP pumps, including optimised hydraulics for high efficiency and polished internal finishes, help prevent fouling by bacteria and germs, ensuring sanitary operation. The hydraulic end construction is made of AISI 316L stainless steel throughout, providing excellent corrosion resistance and compatibility with sanitary processes. The specialised mechanical seal can handle hot pumped media, making the pumps suitable for applications involving high-temperature liquids.
When selecting and installing the DFP sanitary pumps, it's crucial to consider the specific requirements of the application, including flow rates, pressure, and the nature of the pumped media. Compliance with industry standards and regulations regarding sanitary and hygienic processes is also essential to ensure the integrity and safety of the products or processes involved.
MOTOR
Pumps are close coupled to reliable TEFC electric motors designed for continuous duty. Single phase motors have integral thermal protection and can be connected directly to the mains power through a 10A fuse or MCB. Three phase motors require a remote DOL starter.
Enclosure Class: F
Insulation Class:IP57
Speed:2900rpm
OPERATING CONDITIONS
Pumped Liquid: Low viscosity fluids with a max. viscosity of 150mm²/s
Maximum Operating Pressure:10 bar
Maximum Temperature : 110º C

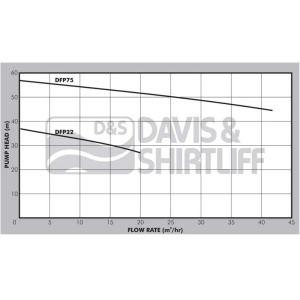

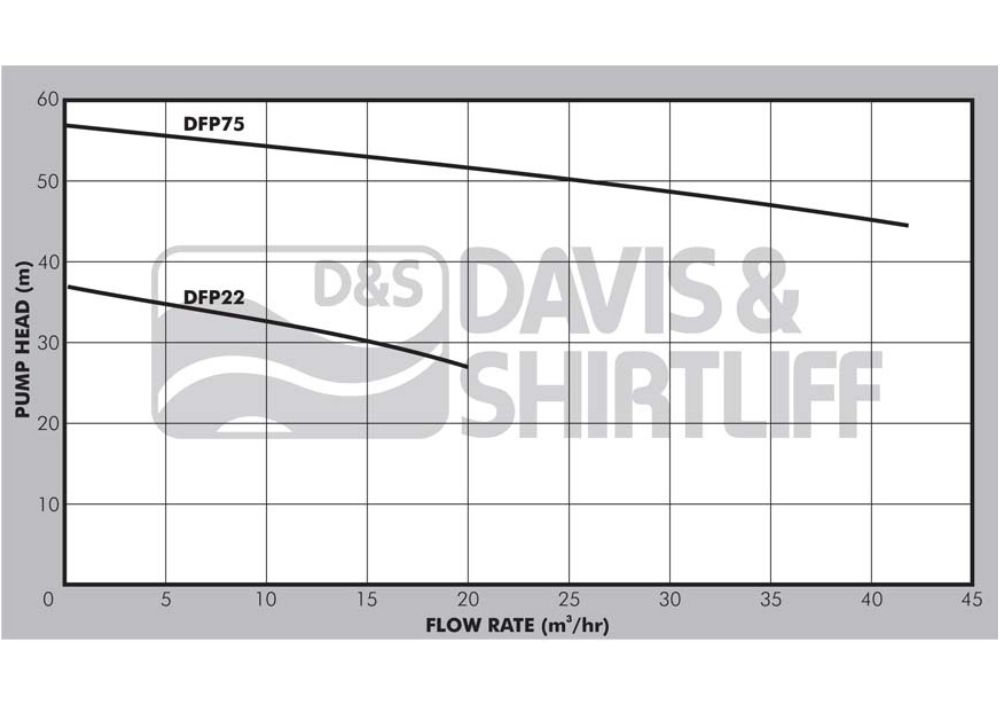

PUMP DATA
| Model |
Power |
Current(A) |
Voltage(V) |
DNA(") |
DNM(") |
Dimensions(mm) |
Weight |
| kW |
HP |
W |
H |
L |
D2 |
D1 |
| DFP22 |
2.2 |
3 |
5 |
1X240 |
50 |
32 |
244 |
292 |
472 |
165 |
140 |
32 |
| DFP75 |
7.5 |
10 |
15 |
3X415 |
65 |
40 |
300 |
340 |
535 |
185 |
150 |
67 |
