Typical Applications
- Pump clean water with sand content 150g/m³ for diverse applications.
- Extract water efficiently from wells for various agricultural needs.
- Utilize the pump for river-based water extraction and distribution purposes.
- Support farm irrigation systems, ensuring optimal water supply for crops.
- Provide reliable water supply solutions for various domestic and industrial uses.
- Facilitate efficient water extraction in mining operations for diverse applications.
- Aid in drainage systems within the breeding industry for optimal conditions.
Operating Conditions
- Mechanical seal
- Water temperature up to 35℃
- Ambient temperature permissible up to 40℃
- SSD Minimum internal diameter of well: 3"(75mm)
- Maximum immersion depth: 80m
Rewindable motor
Insulation: Class B
Protection Ip68
| Components |
Material |
| Pump body |
Stainless steel |
| Pump shaft |
Stainless steel |
| Impeller |
POM |
| Bearing |
C&U |
| Mechanical seal |
Ceramic /Graphite,
SIC/Graphite or Alloy |
| Coupling and outlet |
Brass, Stainless steel |
| Shaft coupling |
AISI304 SS |

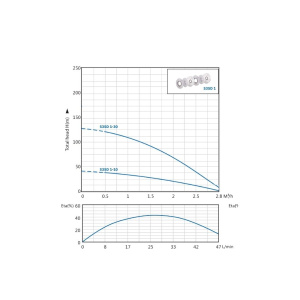

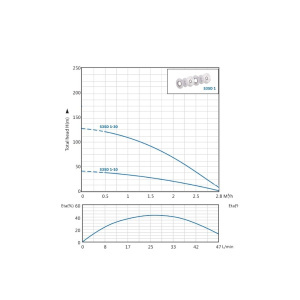

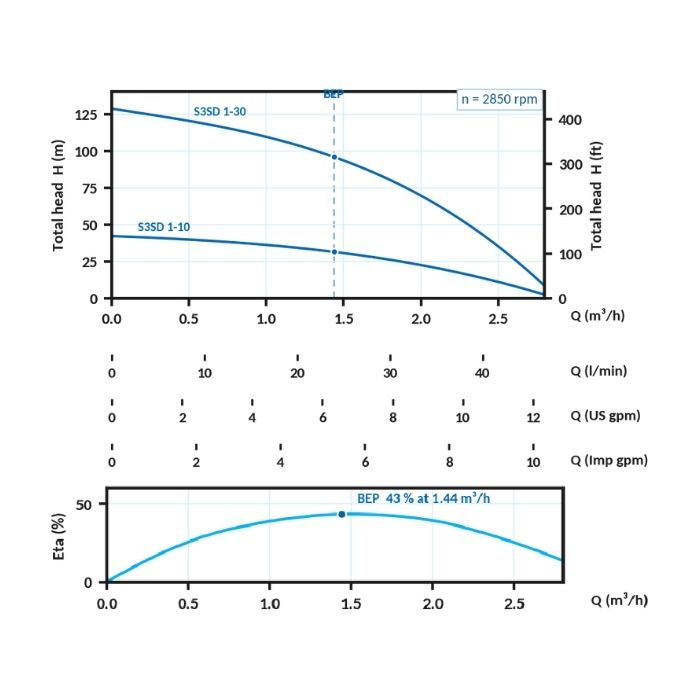

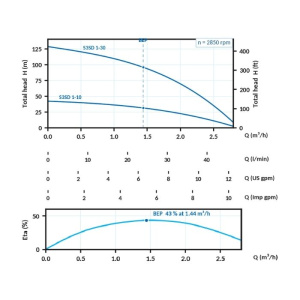

Technical Data
|
Model
|
Supply
|
Motor P2 |
Current at 50 Hz (A) |
Stages
|
Max. head (m)
|
Max. flow (m³/h)
|
Outlet
|
Dimensions (mm) |
Weight (kg)
|
| kW |
HP |
Operating In |
Starting Ist |
Ø D |
P |
M |
T |
| S3SD 1-10 |
220-240 V |
0.25 |
0.33 |
2.5 |
11 |
10 |
42 |
2.8 |
1" / 1¼" |
74 / 73 |
431 |
372 |
753 |
7.1 |
| S3SD 1-30 |
220-240 V |
0.75 |
1 |
6 |
27 |
30 |
128 |
2.8 |
1" / 1¼" |
74 / 73 |
919 |
472 |
1341 |
11.7 |
