SOLUTIONS

SSD 2

SSD 2
SSD 2ssd2_501152540


The add to cart button will appear once you select the values above

Typical Applications

  • Pump clean water with sand content 150g/m³ for diverse applications.
  • Extract water efficiently from wells for various agricultural needs.
  • Utilize the pump for river-based water extraction and distribution purposes.
  • Support farm irrigation systems, ensuring optimal water supply for crops.
  • Provide reliable water supply solutions for various domestic and industrial uses.
  • Facilitate efficient water extraction in mining operations for diverse applications.
  • Aid in drainage systems within the breeding industry for optimal conditions.

Operating Conditions

  • Water temperature up to 35℃
  • Ambient temperature permissible up to 40℃
  • SSD Minimum internal diameter of well: 4"(100mm)
  • Maximum sand content: 0.25%
  • Maximum immersion depth: 80m
  • Rewindable motor Insulation: Class B Protection Ip68
Components Material
Pump body Stainless steel
Motor bracket Stainless steel
Motor shaft AISI304 SS
Pump shaft Stainless steel
Impeller POM
Diffuser PC
Bearing C&U, NSK if request
Mechanical seal Ceramic /Graphite,
SIC/Graphite or Alloy
Coupling and outlet Brass, Stainless steel
Shaft coupling AISI304 SS

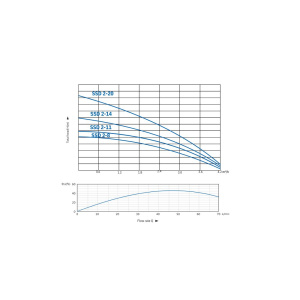

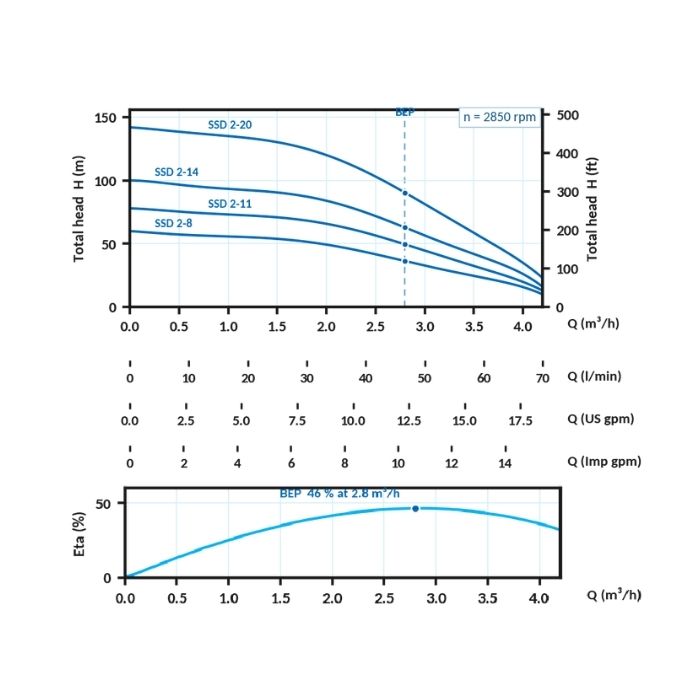

Technical Data

Model
Supply
 Motor P2 Current at 50 Hz (A)
Stages
Max. head (m)
Max. flow (m³/h)
Outlet
 Dimensions (mm)
Weight (kg)
kW HP Operating In Starting Ist Ø D P M T
SSD 2-8 220-240 V 0.37 0.5 3.7 17 8 60 4.2 1¼" / 1½" 98 / 95 424 363 737 11
SSD 2-11 220-240 V 0.55 0.75 4.7 21 11 78 4.2 1¼" / 1½" 98 / 95 505 378 833 12.6
SSD 2-14 220-240 V / 380-415 V 0.75 1 6.2 / 2.5 28 / 11 14 100 4.2 1¼" / 1½" 98 / 95 586 398 934 14.5
SSD 2-20 220-240 V / 380-415 V 1.1 1.5 8 / 3.2 36 / 14 20 142 4.2 1¼" / 1½" 98 / 95 779 438 1167 17.1



Product Videos

Datasheet/Downloads SSD 2 Datasheet
