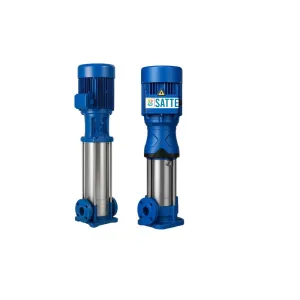

SAR 12

SAR 12

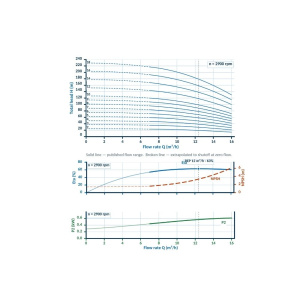

SAR 12sar_12


The add to cart button will appear once you select the values above

Typical Applications

  • Municipal water distribution - The pump can be used to supply water in urban and rural areas through municipal water supply systems.
  • High-rise buildings - Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
  • Agricultural irrigation - The pump can be employed in farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth.
  • Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
  • Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer liquids fordifferentpurposes.

Operating Conditions

  • PumpedLiquids:Thin,clean,non-explosive liquids without solid particles or fibres.
  • Liquid Temperature Range: -15°C to +120°C Maximum Ambient
  • Temperature: +50°C
  • Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
  • Maximum Operating Pressure: 23 bar

Technical Data

Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)
Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 12-2 1.5 2 1~ 220-240 V 9.5 43 29 72 12 20 23.5 16 2900 2.3 DN50 367 290 657 190 155 39
SAR 12-3 2.2 3 1~ 220-240 V 14 61 41 74 12 30 35.5 16 2900 3.5 DN50 397 290 687 190 155 43
SAR 12-4 3 4 3~ 380-415 V 5.9 38 18 85.8 12 40 47 16 2900 4.6 DN50 437 345 782 197 165 51
SAR 12-5 3 4 3~ 380-415 V 5.9 38 18 85.8 12 50 59.5 16 2900 5.8 DN50 467 345 812 197 165 53
SAR 12-6 4 5.5 3~ 380-415 V 7.7 50 23 86.8 12 60 71.5 16 2900 7 DN50 497 355 852 230 188 61
SAR 12-7 5.5 7.5 3~ 380-415 V 11 68 32 87.8 12 70 83.5 16 2900 8.2 DN50 547 390 937 260 208 73
SAR 12-8 5.5 7.5 3~ 380-415 V 11 68 32 87.8 12 80 95.5 16 2900 9.4 DN50 577 390 967 260 208 74
SAR 12-9 5.5 7.5 3~ 380-415 V 11 68 32 87.8 12 91 108 16 2900 10.6 DN50 607 390 997 260 208 76
SAR 12-10 7.5 10 3~ 380-415 V 14 91 42 88.5 12 101 120 16 2900 11.8 DN50 637 390 1027 260 208 83
SAR 12-12 7.5 10 3~ 380-415 V 14 91 42 88.5 12 121 143.5 16 2900 14.1 DN50 697 390 1087 260 208 87
SAR 12-14 11 15 3~ 380-415 V 20 142 61 89.7 12 141 168 16 2900 16.5 DN50 845 500 1345 330 255 157
SAR 12-16 11 15 3~ 380-415 V 20 142 61 89.7 12 162 192.5 16 2900 18.9 DN50 905 500 1405 330 255 161
SAR 12-18 11 15 3~ 380-415 V 20 142 61 89.7 12 183 217 16 2900 21.3 DN50 965 500 1465 330 255 164



Product Videos

Datasheet/Downloads SAR 12 Datasheet
