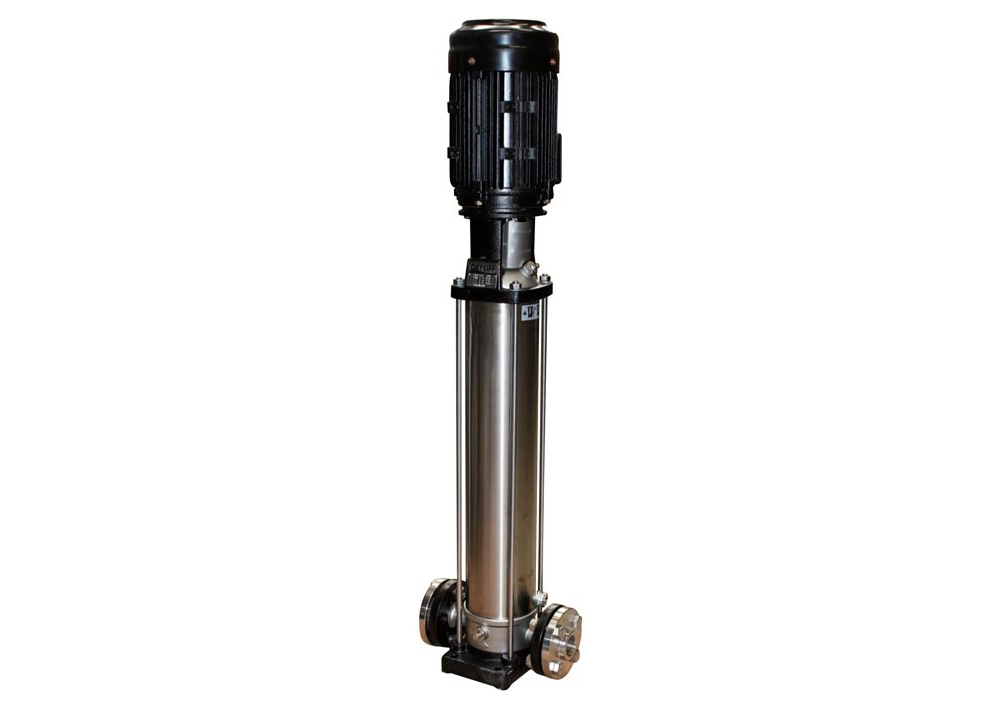

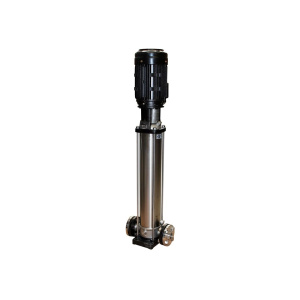

DI/DIN45

The DAYLIFF DI/DIN pump range consists of non-self-priming vertical multistage in-line centrifugal pumps designed for a wide range of water supply, irrigation, liquid transfer, and boosting applications. These pumps are heavy-duty and designed for continuous operation in commercial and industrial installations. Here are some Applications where the DI/DIN pump range can be used:

1. Water Supply Systems: The DI/DIN pumps are suitable for water supply systems in commercial and industrial buildings. They can provide a reliable water source for various purposes, including general water supply, domestic use, and fire protection systems.

2. Irrigation: These pumps are well-suited for irrigation applications in agricultural settings or landscaping projects. They can deliver water efficiently to irrigation systems, ensuring proper hydration for crops, gardens, lawns, and green spaces.

3. Liquid Transfer: The DI/DIN pumps can be used for transferring liquids in various industries. They can handle the transfer of clean water, chemicals, process liquids, or other compatible fluids, making them suitable for industrial processes, manufacturing, and liquid distribution systems.

4. Water Boosting: These pumps are capable of boosting water pressure in commercial and industrial applications. They can be used to increase water pressure in buildings or systems where higher pressure is required, ensuring adequate water flow for specific processes or equipment.

5. Corrosive or Highly Mineralized Water: The DIN pumps, with their AISI 316 stainless steel components, are specifically suitable for pumping highly mineralized or corrosive water. They can handle water with high mineral content or corrosive properties, making them ideal for applications where standard pumps may be prone to damage or corrosion.

It's important to consider the specific requirements of each application and ensure proper selection, installation, and maintenance of the DI/DIN pumps to optimize their performance and longevity.

MOTOR
The pumps are coupled to high efficiency IE3 totally enclosed fan cooled 2-pole motor complying with IEC standards and must be connected to an effective motor starter in accordance with local regulations.

Enclosure Class: IP55
Insulation Class: F
Voltage: 3x415V
Speed: 2900rpm

OPERATING CONDITIONS
Pumped Liquids: Thin, clean, non-aggressive and non-explosive liquids without solid particles or fibres.
Liquid Temperature Range: -15°C to +120°C
Maximum Ambient Temperature: +50°C
Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
Maximum Operating Pressure: Up to 7.5kW - 16bar, others - 25bar
Maximum Inlet Pressure: DI/DIN 45-2-4Bar, DI/DIN 45-2 to 5-10Bar, DI/DIN 45-6 to 12 -15Bar

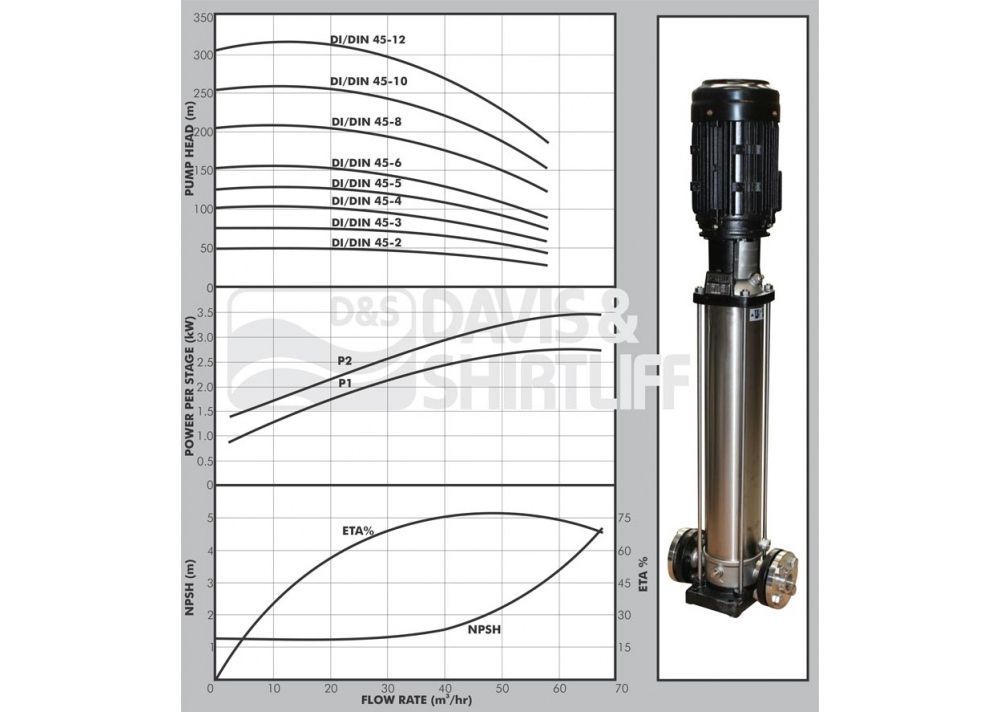

PUMP DATA
