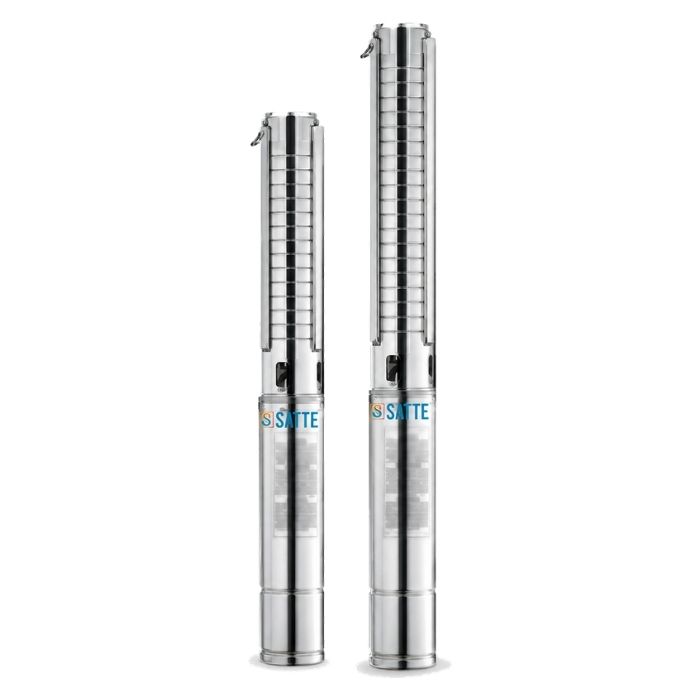

5SSP 30

5ssp_30
5ssp_305ssp_30g


The add to cart button will appear once you select the values above

Typical Applications

  • Watersupply:boreholeabstraction for piped schemes, district distribution andinstitutional supply.
  • Irrigation: field and farm irrigation, sprinkler and drip systems.
  • Pressure boosting and filling of elevated and ground-level tanks.
  • Mining, drainage and breeding-industry water supply.

Operating Conditions

  • Clean water,sandcontent less than 150 g/m³.
  • Water temperature to 35 °C; ambient to 40 °C; immersion to 80 m.
  • Rewindable motor, insulation class B, protection IP68, NEMA dimension standards.

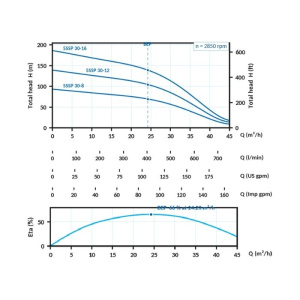

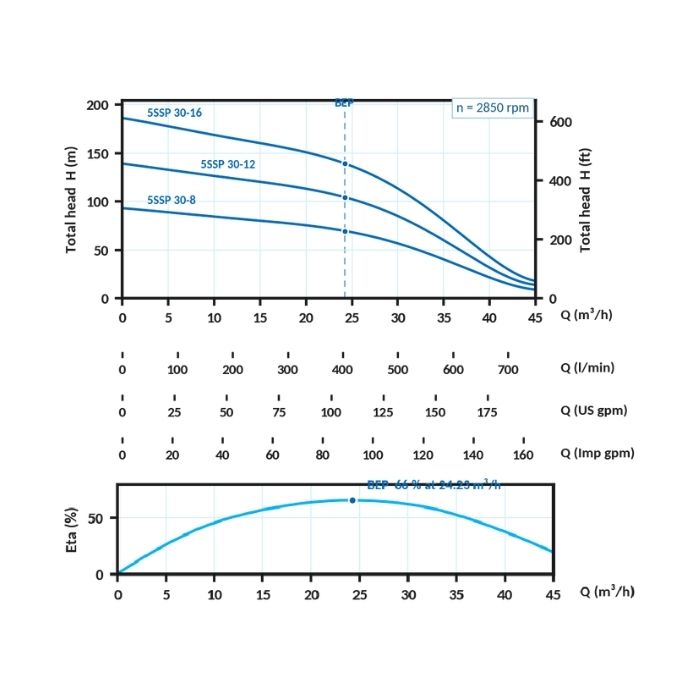

  • Peak pump efficiency 66 % at 24.23 m³/h.
  • Stainless-steel body and shafts; seal ceramic/graphite, SIC or alloy graphite to order; 2 m cable.

Technical Data

Model
Supply
 Motor P2 Current at 50 Hz (A)
Stages
Max. head (m)
Max. flow (m³/h)
Outlet
 Dimensions (mm)
Weight (kg)
kW HP Operating In Starting Ist Ø D P M T
5SSP 30-8 380-415 V 7.5 10 17.7 80 8 93 45 2", 2½" — — 770 — —
5SSP 30-12 380-415 V 11 15 24.9 112 12 139 45 2", 2½" — — 880 — —
5SSP 30-16 380-415 V 15 20 33.9 153 16 186 45 2", 2½" — — 980 — —



Product Videos

Datasheet/Downloads 5SSP 30 Datasheet
