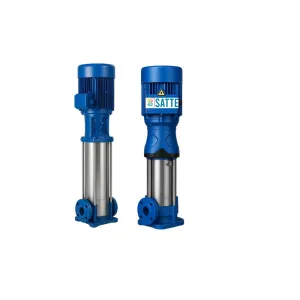

SAR 90

SAR 90
SAR 90sar_90


The add to cart button will appear once you select the values above

Typical Applications

  • Municipal water distribution-The pump can be used tosupply water in urban and rural areas through municipal water supply systems.
  • High-rise buildings - Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
  • Agricultural irrigation - The pump can be employed in farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth.
  • Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
  • Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer liquids for different purposes.

Operating Conditions

  • PumpedLiquids: Thin,clean,non-explosive liquids withoutsolid particles or fibres. Liquid
  • Temperature Range: -15°C to +120°C
  • Maximum Ambient Temperature: +50°C
  • Maximum Operating Pressure: 23 bar

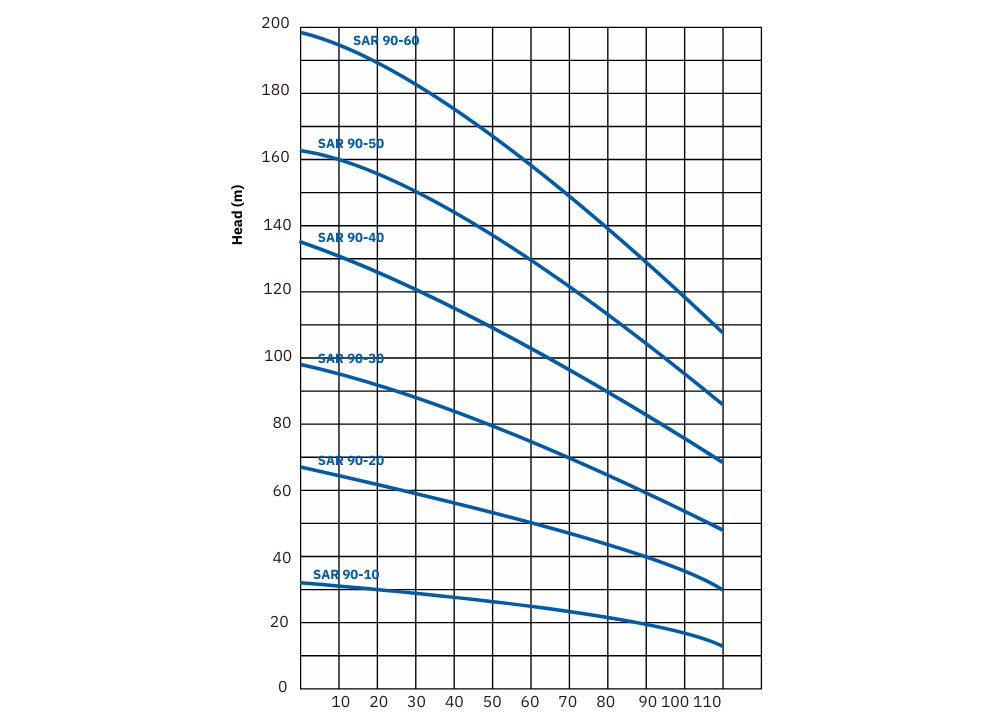

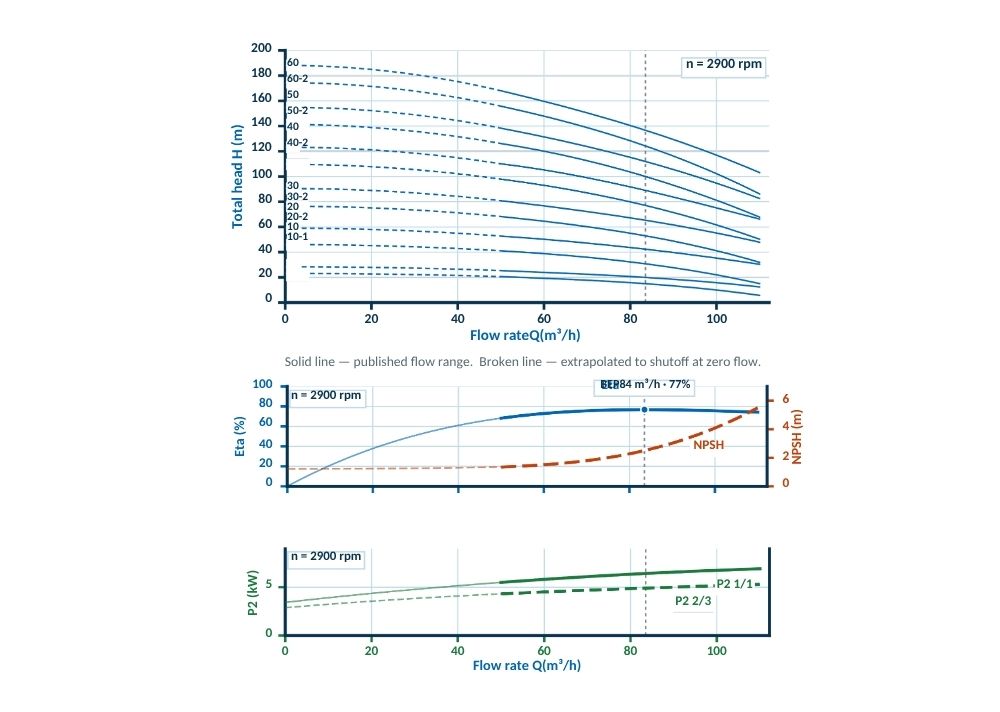

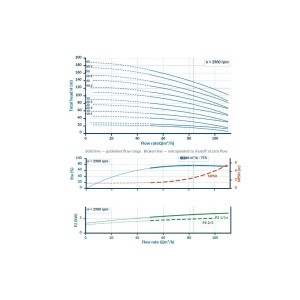

Technical Data

Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)
Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 90-10-1 5.5 7.5 3~ 380-415 V 11 68 32 87.8 90 13 22 110 2900 2.2 DN100 571 390 961 260 208 105
SAR 90-10 7.5 10 3~ 380-415 V 14 91 42 88.5 90 19 25 110 2900 2.5 DN100 571 390 961 260 208 110
SAR 90-20-2 11 15 3~ 380-415 V 20 142 61 89.7 90 28 41 110 2900 4 DN100 773 500 1273 330 255 181
SAR 90-20 15 20 3~ 380-415 V 27 190 82 90.5 90 40 53 110 2900 5.2 DN100 773 500 1273 330 255 192
SAR 90-30-2 18.5 25 3~ 380-415 V 33 233 100 91 90 49 68 110 2900 6.7 DN100 865 550 1415 330 255 215
SAR 90-30 22 30 3~ 380-415 V 40 277 119 91.3 90 62 81 110 2900 7.9 DN100 865 575 1440 360 285 252
SAR 90-40-2 30 40 3~ 380-415 V 53 374 160 92 90 72 98 110 2900 9.6 DN100 957 650 1607 400 310 312
SAR 90-40 30 40 3~ 380-415 V 53 374 160 92 90 84 110 110 2900 10.8 DN100 957 650 1607 400 310 312
SAR 90-50-2 37 50 3~ 380-415 V 66 460 197 92.4 90 93 126 110 2900 12.4 DN100 1049 650 1699 400 310 336
SAR 90-50 37 50 3~ 380-415 V 66 460 197 92.4 90 106 139 110 2900 13.6 DN100 1049 650 1699 400 310 336
SAR 90-60-2 45 60 3~ 380-415 V 80 557 239 92.8 90 117 155 110 2900 15.2 DN100 1141 685 1826 460 340 407
SAR 90-60 45 60 3~ 380-415 V 80 557 239 92.8 90 130 168 110 2900 16.5 DN100 1141 685 1826 460 340 407



Product Videos

Datasheet/Downloads SAR 90 Datasheet
