DI/DIN1

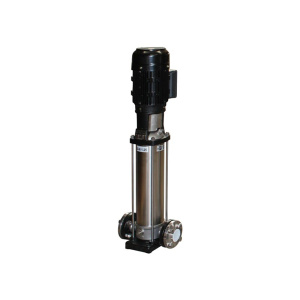

The DAYLIFF DI/DIN pump range consists of non-self-priming vertical multistage in-line centrifugal pumps designed for a wide range of water supply, irrigation, liquid transfer, and boosting applications. These pumps are heavy-duty and designed for continuous operation in commercial and industrial installations. Here are some applications where the DI/DIN pump range can be used:

1. Water Supply Systems: The DI/DIN pumps are suitable for water supply systems in commercial and industrial buildings. They can provide a reliable water source for various purposes, including general water supply, domestic use, and fire protection systems.

2. Irrigation: These pumps are well-suited for irrigation applications in agricultural settings or landscaping projects. They can deliver water efficiently to irrigation systems, ensuring proper hydration for crops, gardens, lawns, and green spaces.

3. Liquid Transfer: The DI/DIN pumps can be used for transferring liquids in various industries. They can handle the transfer of clean water, chemicals, process liquids, or other compatible fluids, making them suitable for industrial processes, manufacturing, and liquid distribution systems.

4. Water Boosting: These pumps are capable of boosting water pressure in commercial and industrial applications. They can be used to increase water pressure in buildings or systems where higher pressure is required, ensuring adequate water flow for specific processes or equipment.

5. Corrosive or Highly Mineralized Water: The DIN pumps, with their AISI 316 stainless steel components, are specifically suitable for pumping highly mineralized or corrosive water. They can handle water with high mineral content or corrosive properties, making them ideal for applications where standard pumps may be prone to damage or corrosion.

It's important to consider the specific requirements of each application and ensure proper selection, installation, and maintenance of the DI/DIN pumps to optimize their performance and longevity.

PUMP DATA

Model Motor Full Load Current (A) IStart/ I Dimensions (mm) Weight (kg)
Voltage (V) kW HP H1 H2 D1 D2
DN1-23 1X240 1.1 1.5 6.9 2 648 879 141 109 34
3X415 2.2 6.3
DN1-30 1x240 1.5 2.0 8.9 3 790 1065 175 140 43
3x415 3.5 7
DN1-36 1x240 2.2 3.0 12.7 2.6 898 1173 175 140 47
3x415 4.8 7
