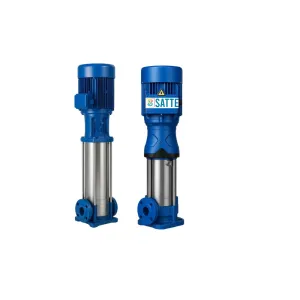

SAR 10

SAR 10
SAR 10sar_10


The add to cart button will appear once you select the values above

Typical Applications

  • Municipal water distribution - The pump can be used to supply water in urban and rural areas through municipal water supply systems.
  • High-rise buildings - Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
  • Agricultural irrigation - The pump can be employed in farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth.
  • Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
  • Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer

Operating Conditions

  • PumpedLiquids:Thin,clean,non-explosive liquids without solid particles or fibres.
  • Liquid Temperature Range: -15°C to +120°C Maximum Ambient
  • Temperature: +50°C
  • Maximum Suction Lift: According to the NPSH curve plus a safety margin of 1m
  • Maximum Operating Pressure: 23 bar

Technical Data

Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)
Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 10-2/1 0.75 1 1~ 220-240 V 5 23 15 68 10 8 10.2 14 2900 1 DN40 347 245 592 170 142 32
SAR 10-2 0.75 1 1~ 220-240 V 5 23 15 68 10 16.5 21 14 2900 2.1 DN40 347 245 592 170 142 32
SAR 10-3 1.1 1.5 1~ 220-240 V 7.2 32 22 70 10 25.5 31.5 14 2900 3.1 DN40 377 245 622 170 142 34
SAR 10-4 1.5 2 1~ 220-240 V 9.5 43 29 72 10 34 42 14 2900 4.1 DN40 417 290 707 190 155 40
SAR 10-5 2.2 3 1~ 220-240 V 14 61 41 74 10 43 52.5 14 2900 5.1 DN40 447 290 737 190 155 44
SAR 10-6 2.2 3 1~ 220-240 V 14 61 41 74 10 52 63 14 2900 6.2 DN40 477 290 767 190 155 45
SAR 10-8 3 4 3~ 380-415 V 5.9 38 18 85.8 10 71 85 14 2900 8.3 DN40 547 345 892 197 165 53
SAR 10-10 4 5.5 3~ 380-415 V 7.7 50 23 86.8 10 89 107 14 2900 10.5 DN40 607 355 962 230 188 64
SAR 10-12 4 5.5 3~ 380-415 V 7.7 50 23 86.8 10 107 129 14 2900 12.6 DN40 667 355 1022 230 188 66
SAR 10-14 5.5 7.5 3~ 380-415 V 11 68 32 87.8 10 125 151 14 2900 14.8 DN40 747 390 1137 260 208 81
SAR 10-16 5.5 7.5 3~ 380-415 V 11 68 32 87.8 10 144 173 14 2900 17 DN40 807 390 1197 260 208 84
SAR 10-18 7.5 10 3~ 380-415 V 14 91 42 88.5 10 163 195 14 2900 19.1 DN40 867 390 1257 260 208 93
SAR 10-20 7.5 10 3~ 380-415 V 14 91 42 88.5 10 181 217 14 2900 21.3 DN40 927 390 1317 260 208 94



Product Videos

Datasheet/Downloads SAR 10 Datasheet
