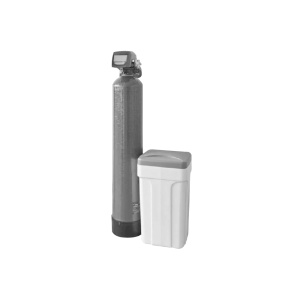

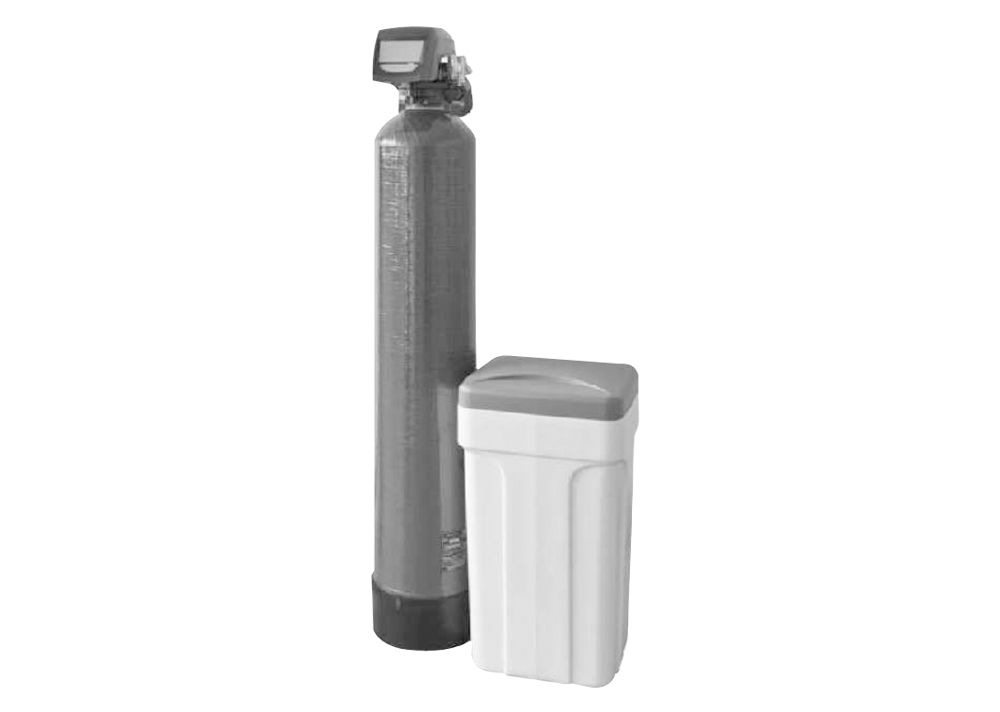

Atlas 'Jupiter' water softeners use the ion exchange principal for the removal of hardness in water exchanging the Calcium and Magnesium ions, which cause the hardness condition, with Sodium ions using the medium of a strong cationic resin led. The filter bed is regenerated at regular intervals using Sodium Chloride (Brine) solution by a backwash process during which the removal hardness ions are flushed to waste. All softeners include the following:-
- Strong GRP reinforced polyethylene resin tank designed for long life.
- Polyethylene brine tank with drain piping.
- Control valve that automatically cycles the regeneration process on either a volume or time elapsed basis depending upon parameter specifications. Regeneration can be programmed according to operating conditions.
- A filter charge of cationic ion exchange resin.
Atlas 'Jupiter' water softeners are quality units designed for continuous operation in small flow requirements including domestic, process and industrial applications. The combined features of simplicity of operation and robust design make them an ideal solution for all softening requirements.
EQUIPMENT SPECIFICATION
| Model |
Resin Capacity (ltr) |
Exchange Capacity* |
Brine Consumption (kg) |
Recommended Max Flow Rate (m³/hr) |
Outlet |
Dimension (mm) |
Weight (kg) |
| L |
D |
H |
W |
| JUPITER 30AVL |
30 |
2250 |
4.5 |
1.8 |
¾” |
1087 |
264 |
790 |
380 |
40 |
| JUPITER 70AVL |
70 |
5250 |
13 |
3 |
1” |
1588 |
338 |
825 |
565 |
82 |
* Exchange capacity may vary depending on resin used.
Softeners are rated by their exchange capacity, which is in the quantity of Calcium that is removable between regenerations and is determined by the resin performance and resin capacity. Equipment sizing is then computed on the basis of the raw water hardness and the required brine regeneration period, 24hrs being the minimum.
