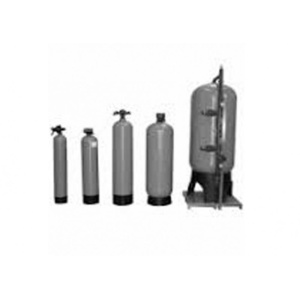

The Pentair PXD Industrial media filters are specifically designed for automated operation in commercial and industrial applications that require higher levels of operating pressure and reliability. These filters are versatile and suitable for various media types, including silica sand, activated carbon, and activated alumina. Here are the applications and features of Pentair PXD Industrial media filters:
Applications:
1. Sediment Removal: The PXD filters are suitable for applications that require sediment removal from water sources. They can effectively remove particles and suspended solids, improving water quality for various industrial processes and applications.
2. Taste, Odor, and Chlorine Removal: The filters can be used for taste, odor, and chlorine removal from water. By utilizing activated carbon media, they help improve the taste and odor of the water, making it more appealing for consumption or specific industrial applications.
3. Fluoride Removal: For applications that require the removal of fluoride from water sources, the PXD filters can utilize activated alumina media. This media helps reduce the fluoride content in water, ensuring compliance with specific regulatory requirements.
Features:
1. Wide Range of Diameters: The PXD filters are available in a wide range of diameters in a Deep Bed configuration. This allows for specialized water treatment media applications, accommodating different flow rates and treatment requirements.
2. High Efficiency Internal Flow Arrangement: The filters are designed with a high-efficiency internal flow arrangement, ensuring even filtration and effective backwashing. This arrangement helps optimize the performance of the filter and maintain its efficiency over time.
3. Pentair Structural Fiberglass Pressure Vessels: The filters are built with Pentair's tried and tested Structural Fiberglass pressure vessels, designed specifically for high-pressure applications. These vessels are rated at 10 bar, providing reliability and durability in demanding industrial environments.
4. Control Options: The filters offer flexibility in control options. They can be equipped with Dayliff electronic control valves for automatic timed control of backwash and service flows. Alternatively, a multi-port six-way valve is available for manual operation.
5. Reliable and Efficient Operation: Pentair PXD filters are known for their high quality and reliable performance. With proper maintenance, they can provide many years of efficient and trouble-free operation, ensuring consistent water quality in industrial applications.
The Pentair PXD Industrial media filters offer a dependable solution for automated water filtration in commercial and industrial settings. With their wide range of applications, high-quality construction, and efficient operation, they provide reliable filtration and water treatment for various industrial processes and treatment requirements.
EQUIPMENT SPECIFICATION
| Vessel Model |
Filter Area (m²) |
Rated Service Flow (m³/hr) |
Rated Backwash Flow |
Max Operating Pressure |
Outlet Sizes (") |
Dimensions (mm) |
Weight(kg) |
| Glass |
Activated Carbon |
Glass |
Activated Carbon |
Manual MPV |
Auto Valve |
1 |
H |
D |
Nett |
Gross |
| PXD 200 |
0.03 |
0.8 |
0.7 |
1.2 |
1.0 |
5 Bar |
6 Bar |
900 |
200 |
5 |
45 |
| PXD 240 |
0.05 |
1.3 |
1.0 |
1.9 |
2.0 |
1373 |
250 |
7 |
30 |
| PXD 350 |
0.09 |
2.3 |
1.8 |
3.4 |
2.7 |
1370 |
330 |
15 |
175 |
| PXD 400 |
0.13 |
3.3 |
2.6 |
4.9 |
3.9 |
1830 |
400 |
30 |
265 |
| PXD 600 |
0.22 |
5.5 |
4.4 |
8.3 |
6.6 |
1770 |
550 |
40 |
500 |
| PXD 900 |
0.66 |
16.5 |
13.2 |
24.8.0 |
19.8 |
2 |
2150 |
930 |
105 |
1700 |
Note: Above flowrates specified at velocities of 25m/hr for glass, 20m/hr for AC and 40m/hr for glass backwash and 30m/hr for AC backwash.
