SFLO SP

SFLO SP
SFLO SPSFLO SP


The add to cart button will appear once you select the values above

Typical Applications

  • Ideal for water supply in off-grid and remote locations where traditional
    power sources are unavailable.
  • Suitable for irrigation systems in fields and farms, enhancing water
    access efficiency.
  • Provides a reliable water source for rural communities, promoting
    sustainable development.
  • Useful for emergency situations, offering a solar-powered solution for
    temporary water supply needs.
  • Adaptable to varying environmental conditions, offering flexibility in
    deployment for different climates and terrains.

Operating Conditions

  • Non-corrosive water; the volume ratio al sand content no more than 3%;
    particle size less than Imm
  • Max medium temperature up to +40°C; PH value remains 5-10
  • Work close to the rated head and must be immersed in water.

Material

  • Stainless Steel Casing, shaft core, coupling & Pump
    body, copper alloy connecting, base, Stainless Steel
    impeller & Stainless steel inlet
  • Oil filled stainless steel submersible motor

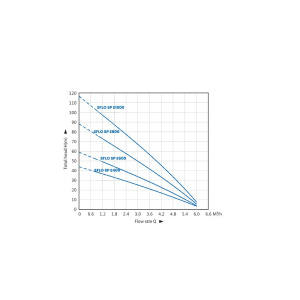

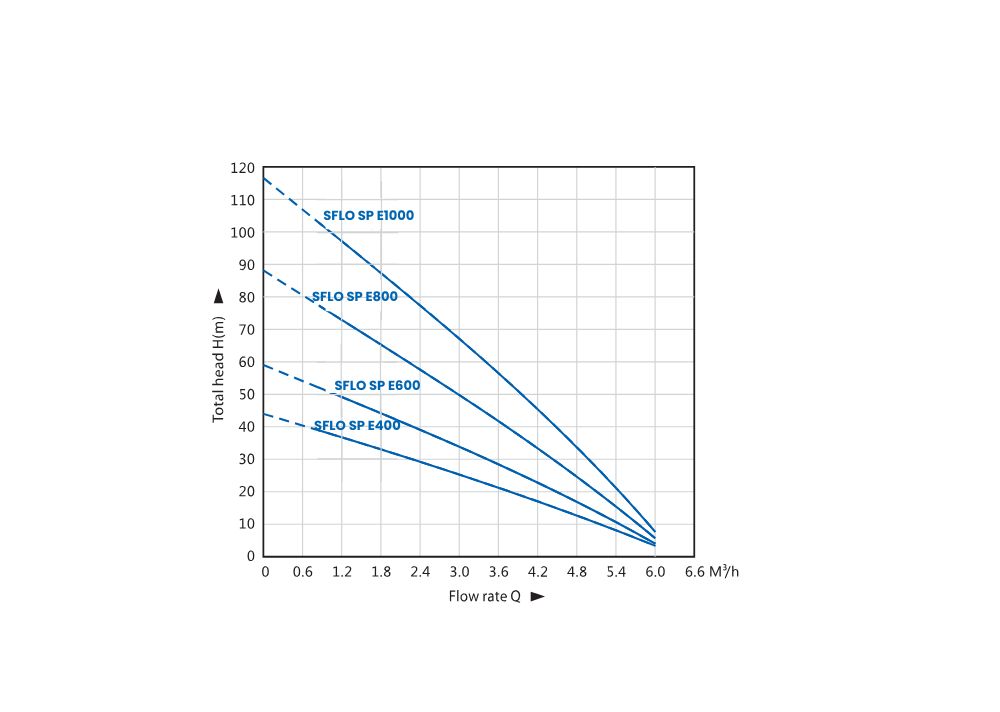

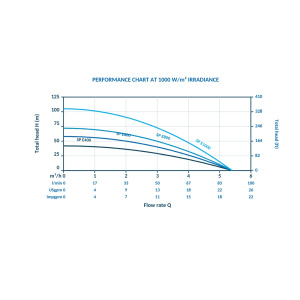

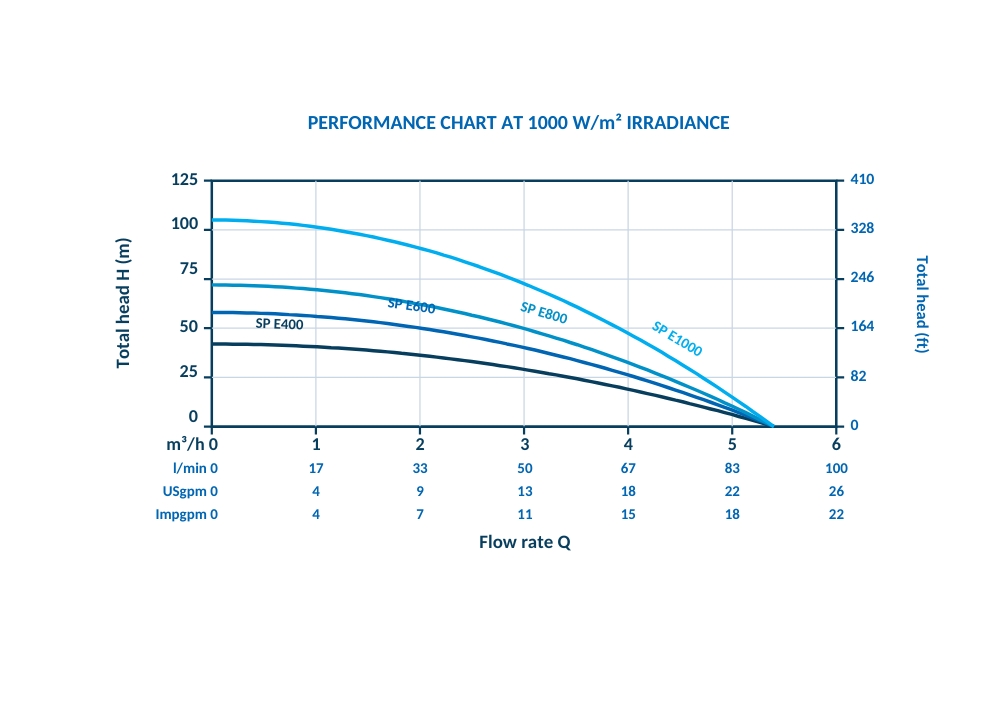

Technical Data

Max Input (VDC) Array Vmp Window (V) Weight (kg)
m³/h l/min US gpm Imp gpm m ft
SP E400 400 48 9.1 3 5.4 90 23.8 19.8 42 138 1" DC48-VMP72 96 55–96 17
SP E600 600 48 13.6 4 5.4 90 23.8 19.8 58 190 1" DC48-VMP72 96 55–96 19
SP E800 800 48 18.1 6 5.4 90 23.8 19.8 72 236 1.25" DC48-VMP72 96 55–96 21
SP E1000 1000 72 15.1 8 5.4 90 23.8 19.8 105 344 1.25" DC72-VMP108 150 82–150 24

Product Videos

Datasheet/Downloads SFLO SP Datasheet
