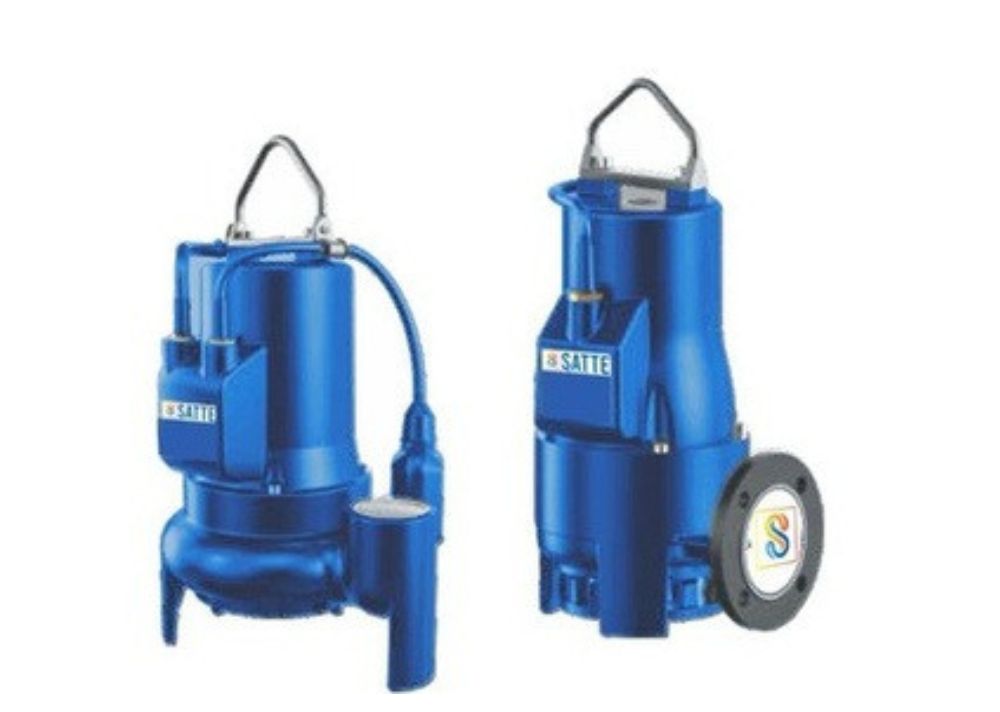

SWQH

Typical Applications

• Suitable for dirty water that isn't chemically aggressive to pump
  materials.
• Reliable and easy to use for handling various dirty water situations.
• Ideal for clearing dirty water in domestic and industrial environments.
• Used for discharging domestic wastewater with solid particles up to
  40mm.
• Efficient for emptying collection traps containing particles up to 40mm.
• Here are additional points for the pump's application, each in 12
  words:
• Effective for dewatering flooded areas, including basements,
  construction sites, and trenches.
• Suitable for draining water from agricultural fields or irrigation
  systems.
• Can be used in industrial settings for removing process water.
• Works well in wastewater treatment for transporting sludge and waste
  liquids.
• Ideal for transferring water from ponds, lakes, and other natural water
  bodies.

Motor

• Two-pole induction motor(n=2850 r.p.m)
• Insulation Class B
• Protection IP44
• Thermal protector for single phase
• Three-phase 380V/50Hz

Component

• Pump body: Cast iron Motor
• Housing: Cast iron
• Impeller: Cast iron
• Motor shaft: AIS1304 SS
• Mechanical Seal: SIC(0.55~2.2kW)
• Alloy (3.0~7.5kW) 8m power cable with plug

Operating Conditions

• * 5m maximum immersion depth
• * Liquid temperature up to 35°C
• * Maximum ambient temperature 40°C

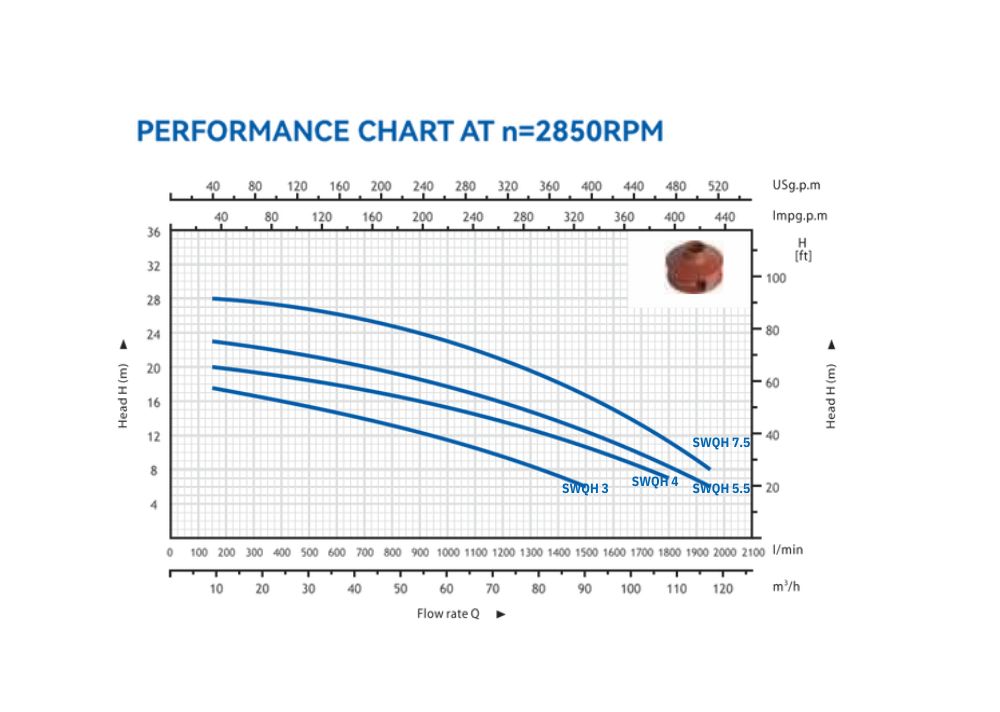

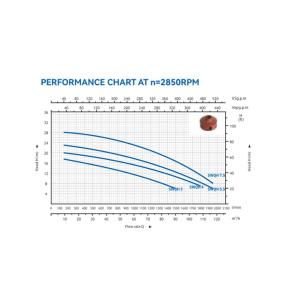

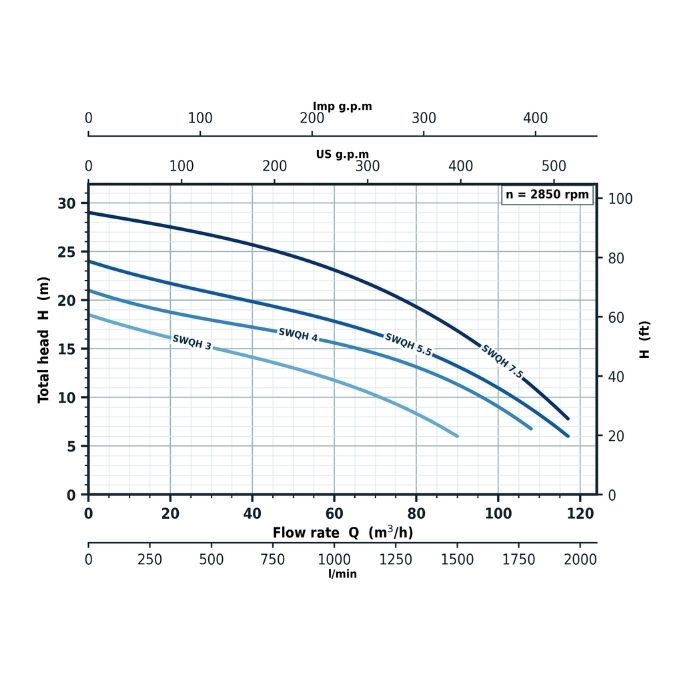

 Technical data
